This crystal structure is sometimes called B2 type. The crystal system is cubic. It looks like body centered cubic structure, but not.
B2 martensite
|
|
Parent phase of AuCd or TiNi.
This crystal structure is sometimes called B2 type. The crystal system is cubic. It looks like body centered cubic structure, but not. |
|
|
g2' martensite structure. The crystal structure is called B19, orthorhombic. This crystal structure appears in AuCd or TiNi. |
|

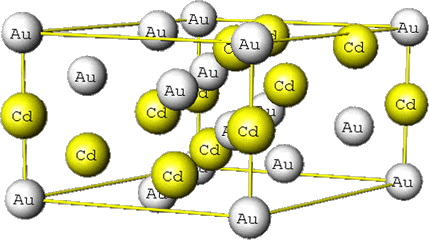

z2' martensite structure, trigonal. This crystal structure appears in z2' phase of AuCd or R phase of TiNi. |
|
|

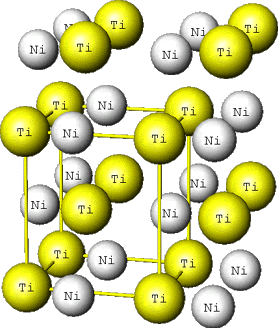

Martensitic structure appeared in TiNi. It is called B19' type structure, belonging to a monoclinic system. |
